16 Volt AGM Racing Battery + Performance IntelliCharger Package
Group 34
Built to Deliver Peak Cranking Power
Cold Cranking Amps: 605
Max Amps: 2,400
587 Stud Adapter Hardware Included
46.5 lbs.

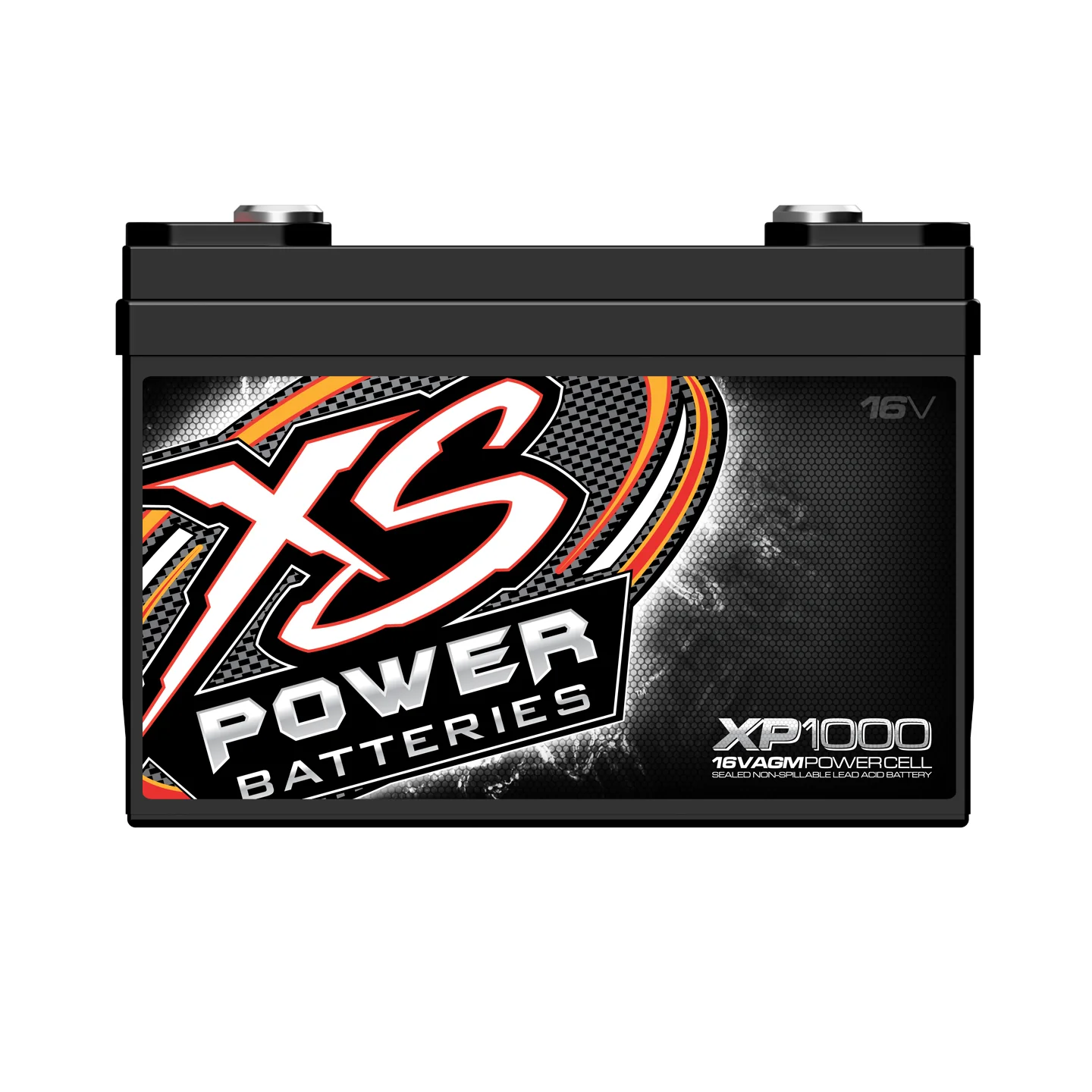

Extreme power and unparalleled durability makes the XP1000 the premier AGM battery for race cars with high-compression engines.* With plenty of juice in reserve, it can run the vehicle and aftermarket gear like the ECU, fuel pump, and gauges.

Using Absorbent Glass Mat (AGM) technology, the XP1000 easily delivers all the energy you need to effortlessly start the motor and power your entire electrical grid. Its sealed construction keeps it completely safe from vibration, spills and moisture.

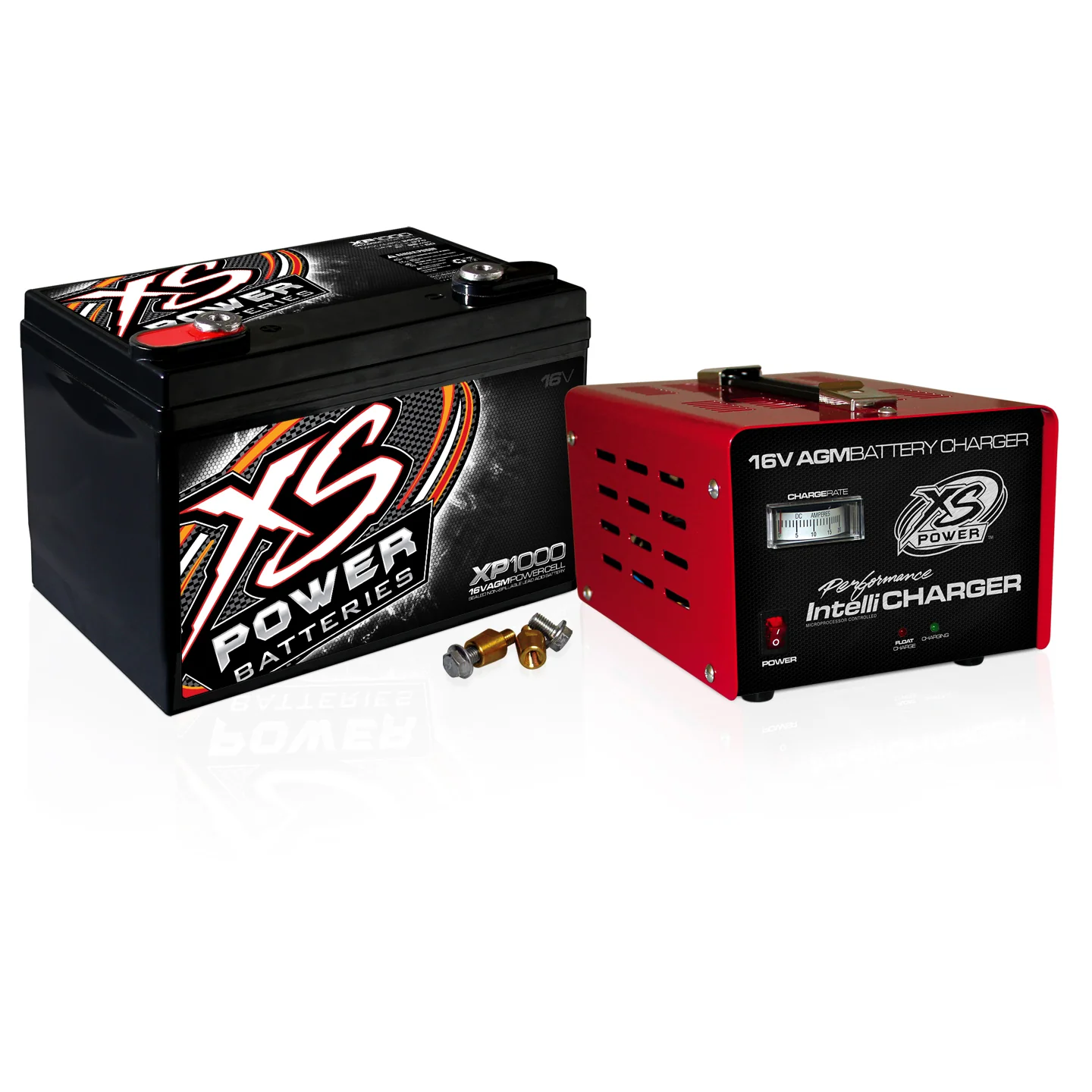

Included with the battery is the XS Power 1004 16V Premium IntelliCharger. This Charger uses a triple-stage microprocessor, bringing your 16-volt AGM or gel-cell battery to its maximum power at max speed without overcharging. The built-in ammeter displays the output, while the fan keeps the entire system safe and cool. The Float indicator lights up when it – and you - are ready to run! See the details below.

*Contact our Customer Service department for questions.

DESCRIPTION

XP1000 16V Battery and 1004 16V, 20A IntelliCharger Combo

Weight Lbs. – 65.1

Weight Kgs. - 28.5

Length – 17.2 in

Height – 15.4 in

Width – 11.5 in

Max Amps – 2,400A

CA – 675

CCA – 605

Ah – 50

RC – 85

575 with M10 Terminal Hardware Included

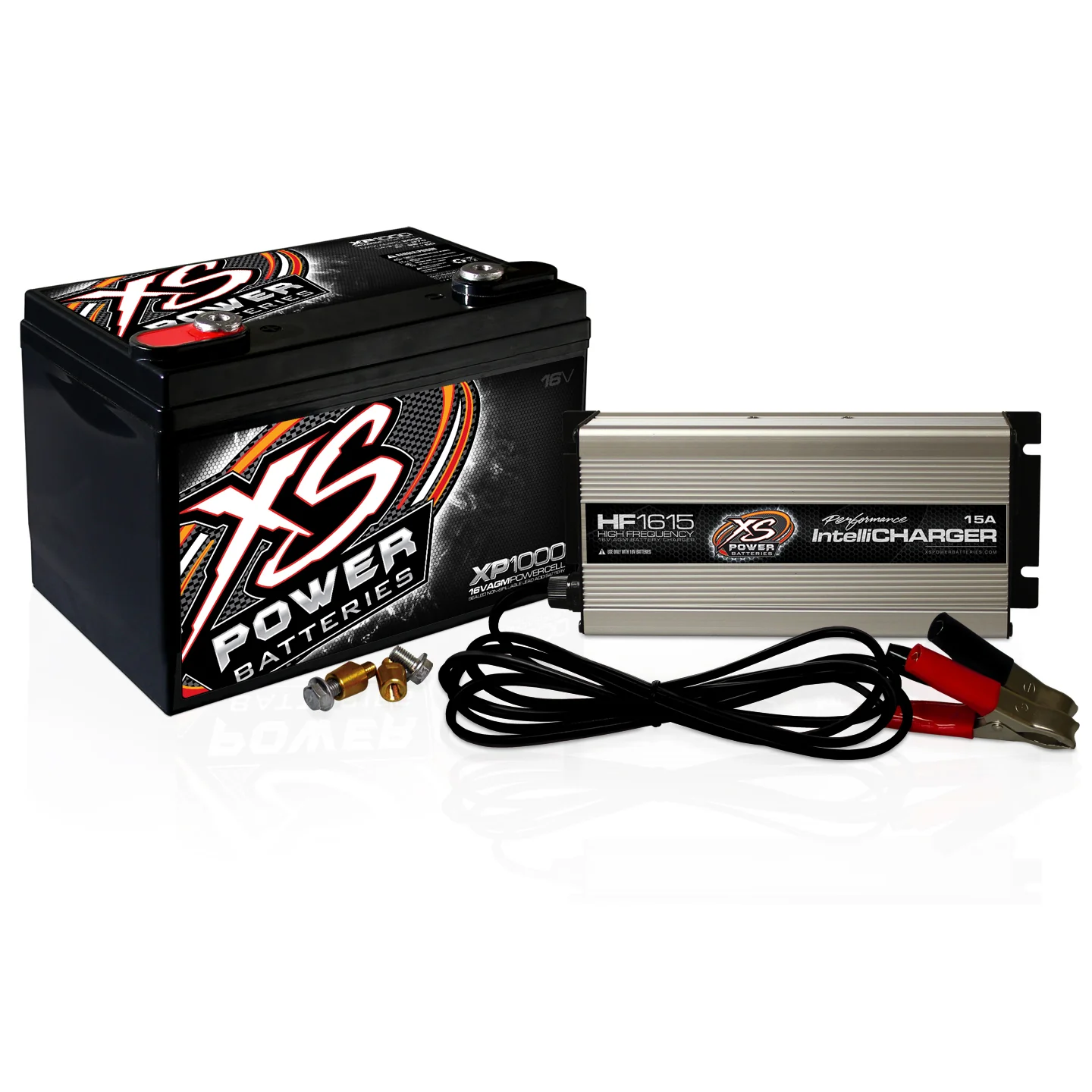

HF1615 16V, 15A High Frequency AGM IntelliCharger

Weight Lbs. – 14.1

Weight Kgs. – 6.44

Length – 9.675 in

Height – 5.675 in

Width – 7.25 in

CONNECTIONS

AC Input Connections : 5.0’ (1.5 m) AWG 18

DC Output Connections : 6.0’ (1.8m) AWG 10

AC INPUT SPECIFICATIONS

AC Input Voltage : 100-120 VAC, 60 Hz AC Input Current : 8A RMS fuse protected

1 Year Warranty

DOWNLOAD INSTRUCTIONS

1004 Instructions
